Charging at Home

The Deta.e domestic charge points are compact and smart, suitable for charging all electric and hybrid plug-in vehicles in residential single dwellings.

Designed for quick installation and ease-of-use, they offer a reliable and secure EV charging solution for the whole family. With an array of smart features, they provide up to a 7.4kW power rating, which is faster and safer than a 3-pin plug.

Flexible and compact, the charge points can be mounted directly onto a wall or on a post in remote car parking spaces. The mounting base provides rear, front and top cable entry options with generous wiring space and easy termination. The front socket unit simply plugs into the base and 4 torq screw fixings/rubber bungs fix the socket unit to the base. The hardwired data cable, where used, simply plugs into the ethernet socket as does the RS485 comms cable communicating with the CT/energy meter where fitted for load management.

The charge points can simply be operated via the app and is RFID ready, making it easy to switch them on and off and restricting access to approved users only.

View Brochure

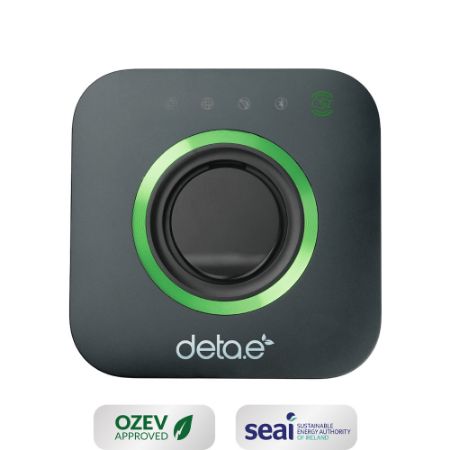

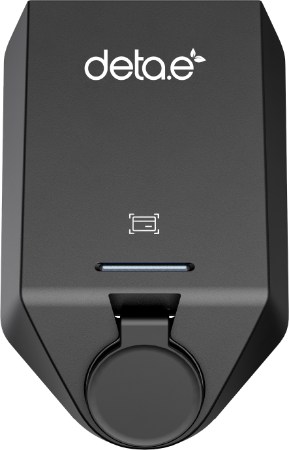

Picture for category Domestic Charge Point
icon

Easy Install

Simple, quick installation

icon

Smart

Software updates available via Wi-Fi

icon

Safe

Built-in safety features to ensure the charging environment is safe and secure

icon

PEN Protection

Provides loss of earth protection, eliminating the time, cost and disruption for an earth rod to be installed

icon

Reliable

A 3/5 year full parts & labour warranty

Compliant with Electric Vehicles (Smart Charge Points) Regulations 2021

Deta.e EV charge points are ‘smart’, enabling users to send and receive information as well as respond to signals by increasing/decreasing the rate and/or timings for charging to take advantage of demand side response services.

Sort by
Display per page

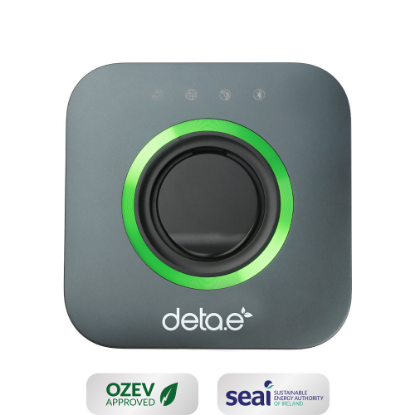

eDock

Picture of eDock
Picture of eDock
Picture of eDock





  • 7.4kW 32A Single Phase
  • Compact Design
  • Integrated 30mA AC & 6mA DC Earth Fault Protection
  • Compatible With Solar & Battery Storage
  • Wi-Fi, Ethernet, Bluetooth & RS485 Communication
  • Auto Load Balancing Available*
  • OCPP 1.6J Compliant for Remote Management & Control
  • Cyber Security/ Anti Tamper
  • Cable Lock Function (via Autel App)
  • IP54 Rated & IK10 Impact Rating
  • OZEV & SEAi Approved
  • Built-in Open PEN protection
  • 3 Yr Warranty (register within 90 days)

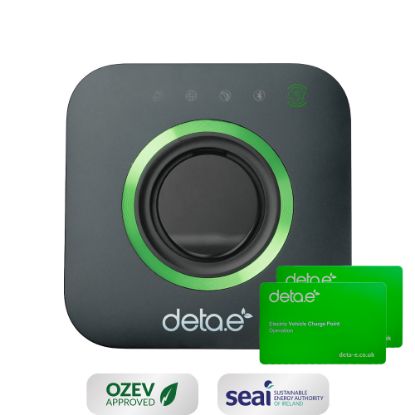

eDock+

Picture of eDock+
Picture of eDock+
Picture of eDock+



  • 7.4kW Single Phase
  • Compact Design
  • Integrated 30mA AC & 6mA DC Earth Fault Protection
  • Compatible with Solar & Battery Storage
  • Wi-Fi, Ethernet, Bluetooth & RS485 Communication
  • Auto Load Balancing Included
  • OCPP 1.6J Compliant for Remote Management & Control
  • Cyber Security/ Anti Tamper Proof
  • Cable Lock Function (via Autel App)
  • RFID Enabled (supplied with 2 cards)
  • IP54 & IK10 Impact Rated
  • 3-Year Parts & Labour Warranty (when registered within 90 days)
Specifications
Model
eDock
Product Number
EVC7001
Connection Capacity
Single Phase, 7.4kW AC
Charging Connector
Un-tethered, IEC 62196/Type 2
Charging Protocol
Mode 3 (EN/IEC61851)
Status Indication / HMI
Multi-colour LED’s on front cover
Standard
WiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; RS485
Dimensions (H xWx D)
192mm x192mm x109mm
Mounting Type
Pole/Wall mounted
Colour
Anthracite Grey
Unit Material
Polycarbonate
Operating Temperature
-30 to +50° C
Operating Humidity
Up to 95%RH, non-condensing
IP Rating
IP54, IK10
EMC Compliance
EN61000-6-3:2006, EN61000-6-2:2019
Safety Compliance
EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A1:2022
EV Charging Compliance
EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
AC Charging Output
7.4kW, 32A@230V AC
Input Voltage
230 AC nominal
Input Frequency
50 Hz
Input Current (max)
32 A
Energy Monitoring
Power and energy monitoring as standard via APP
Overcurrent Protection
Internal overcurrent protection
PEN Fault Protection
Built-in open PEN protection (detection + isolation). Deta EV Home can safely be installed without an earth-rod
Service Fuse Protection
Automated load management via wired CT and MID meter (available seperately)
Specifications
Model
eDock+
Product Number
EVC7002
Connection Capacity
Single Phase, 7.4kW AC
Charging Connector
Un-tethered, IEC 62196/Type 2
Charging Protocol
Mode 3 (EN/IEC61851)
Status Indication / HMI
Deta multi-colour LED's on front cover
Standard
WiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
Dimensions (H xWx D)
192mm x 192mm x 109mm
Mounting Type
Pole/ Wall Mounted
Colour
Black
Unit Material
Polycarbonate
Operating Temperature
-30 to +50 degrees Celsius
Operating Humidity
Up to 95%RH, non-condensing
IP Rating
IP54, IK10
EMC Compliance
EN610000-6-3:2006, EN61000-6-2:2019
Safety Compliance
EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance
EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
AC Charging Output
7.4kW, 32A@230V AC
Input Frequency
230 AC Nominal, 50 Hz
Input Current (max)
32A
Energy Monitoring
Power and energy monitoring as standard via APP
Overcurrent Protection
Internal overcurrent protection
PEN Fault Protection
Built-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
Service Fuse Protection
Automated load management via wired CT & MID meter (available separately)
