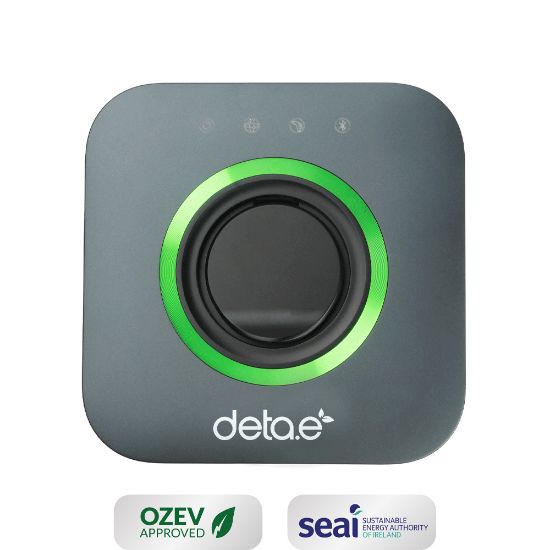

      Picture of eDock
      Picture of eDock
      Picture of eDock

      eDock

      • 7.4kW 32A Single Phase
      • Compact Design
      • Integrated 30mA AC & 6mA DC Earth Fault Protection
      • Compatible With Solar & Battery Storage
      • Wi-Fi, Ethernet, Bluetooth & RS485 Communication
      • Auto Load Balancing Available*
      • OCPP 1.6J Compliant for Remote Management & Control
      • Cyber Security/ Anti Tamper
      • Cable Lock Function (via Autel App)
      • IP54 Rated & IK10 Impact Rating
      • OZEV & SEAi Approved
      • Built-in Open PEN Protection
      • 3 Yr Warranty (register within 90 days)
      £0.00
      Products specifications
      Attribute nameAttribute value
      Product Information
      ModeleDock
      Product NumberEVC7001
      Connection CapacitySingle Phase, 7.4kW AC
      Charging ConnectorUn-tethered, IEC 62196/Type 2
      Charging ProtocolMode 3 (EN/IEC61851)
      Communication
      Status Indication / HMIDeta multi-colour LED's on front cover
      StandardWiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
      Physical Properties
      Dimensions (H xWx D)192mm x 192mm x 109mm
      Mounting TypePole/ Wall Mounted
      ColourAnthracite Grey
      Unit MaterialPolycarbonate
      Environmental Properties
      Operating Temperature-30 to +50 degrees Celsius
      Operating HumidityUp to 95%RH, non-condensing
      IP RatingIP54, IK10
      Standards & Compliance
      EMC ComplianceEN610000-6-3:2006, EN61000-6-2:2019
      Safety ComplianceEN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A1:2022
      EV Charging ComplianceEN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
      Electrical Properties
      AC Charging Output7.4kW, 32A@230V AC*
      Input Voltage230 AC Nominal
      Input Current (max)32A
      Energy MonitoringPower & energy monitoring as standard via APP
      Overcurrent ProtectionInternal overcurrent protection
      Installation
      PEN Fault ProtectionBuilt-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
      Service Fuse ProtectionAutomated load management via wired CT & MID meter (available separately)
