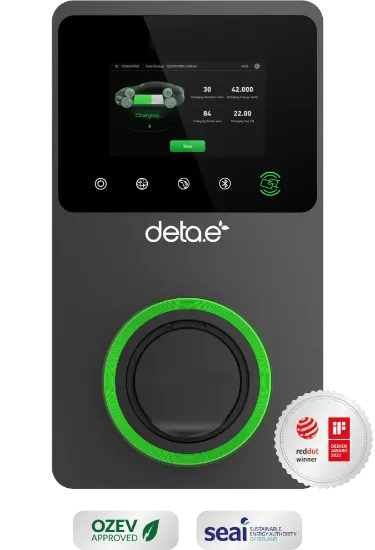

      eVoomXT

      • 7.4kW Single Phase / 11kW/22kW Three Phase
      • Integrated 30mA AC & 6mA DC Earth Fault Protection
      • Built in Open PEN Fault Protection RFID Enabled (Supplied With 2 Cards)
      • LCD Screen Allows Operation via the Screen
      • Customisation of LCD Screen Display for Images/Adverts
      • 4G, Wi-Fi, Ethernet and Bluetooth Connectivity
      • Over-the-Air Firmware Updates
      • Scheduled & Energy Tariff Charging Options
      • Safe Electrical Load Management
      • OCPP 1.6J Compliant for Remote Management & Control
      • 5-Year Warranty
      £0.00
      Products specifications
      Attribute nameAttribute value
      Product Information
      ModeleVoomXT
      Product NumberEVC7005
      Connection CapacitySingle Phase, 7.4kW & Three Phase , 22KW AC
      Charging ConnectorUn-tethered, IEC 62196/Type 2
      Charging ProtocolMode 3 (EN/IEC61851)
      Communication
      Status Indication / HMITouch Screen & Multi-colour LEDs
      StandardWiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; 4G; RS485
      Physical Properties
      Dimensions (H xWx D)335mm x 187mm x 85mm
      Mounting TypePole/Wall mounted
      ColourGrey
      Unit MaterialPC
      Environmental Properties
      Operating Temperature-40 to +55° C
      Operating HumidityUp to 95%RH, non-condensing
      IP RatingIP54, IK10
      Standards & Compliance
      EMC ComplianceEN61000-6-3:2006, EN61000-6-2:2019
      Safety ComplianceEN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
      EV Charging ComplianceEN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
      Electrical Properties
      AC Charging Output7.4kW, 32A@230V AC & 22kW, 32A@400V AC
      Input Voltage230V AC & 400V AC nominal
      Input Frequency50 Hz
      Input Current (max)32 A
      Energy MonitoringPower and energy monitoring as standard via APP & LCD display
      Overcurrent ProtectionInternal overcurrent protection
      Installation
      PEN Fault ProtectionBuilt-in open PEN protection (detection + isolation). Can safely be installed without an earth-rod
      RCD ProtectionIntegrated 30mA AC and 6mA DC RCD
      Service Fuse ProtectionAutomated load management via wired CT and MID meter (available seperately)
      MID MeterInbuilt +/- 1%
