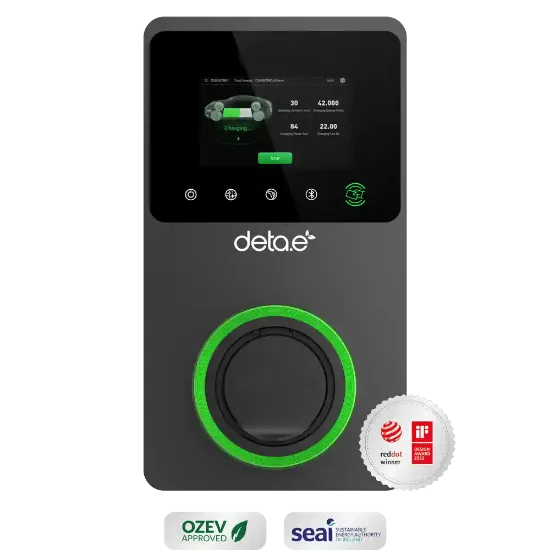

      eVoomXL

      • EVC7006
      • 7.4kW Single Phase/11kW/22kW Three Phase
      • LCD Screen for Operation, Customisation for Images/Adverts
      • Integrated 30mA AC & 6mA DC RCD Protection
      • Compatible with Solar & Battery Storage
      • Built in Open PEN Fault Protection
      • Wi-Fi, Ethernet, Bluetooth and RS485 Communication
      • 4G
      • Load Management (via Cloud or App)
      • OCPP 1.6J Compliant for Remote Management & Control
      • Cyber Security/Anti-Tamper Proof
      • Scheduled & Energy Tariff Charging Options
      • Over-the-Air Firmware Updates
      • Cable Lock Function (via Autel App)
      • IP54
      • IK10 Impact Rating
      • RFID Enabled (Supplied With 2 Cards)
      • 3-Year Warranty
      £0.00
      Products specifications
      Attribute nameAttribute value
      Product Information
      ModeleVoomXL
      Product Number7006
      Connection CapacitySingle Phase, 7.4kW & Three Phase, 22KW AC
      Charging ConnectorUn-tethered, IEC 62196/Type 2
      Charging ProtocolMode 3 (EN/IEC61851)
      Communication
      Status Indication / HMITouch Screen & Multi-colour LEDs
      StandardWiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth, RS485, 4G
      Physical Properties
      Dimensions (H xWx D)335mm x 187mm x 85mm
      Mounting TypePole/ Wall Mounted
      ColourGrey
      Unit MaterialPC
      Environmental Properties
      Operating Temperature-40 to 55 degrees Celcius
      Operating HumidityUp to 95% RH, non-condensing
      IP RatingIP54, IK10
      Standards & Compliance
      EMC ComplianceEN610000-6-3:2006, EN61000-6-2:2019
      Safety ComplianceEN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
      EV Charging ComplianceEN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
      Electrical Properties
      AC Charging Output7.4kW, 32A@230V AC
      Input Voltage230 AC & 400V AC Nominal, 50Hz
      Input Current (max)32A
      Energy MonitoringPower and energy monitoring as standard via APP & LCD Display
      Overcurrent ProtectionInternal overcurrent protection
      Installation
      PEN Fault ProtectionBuilt-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
      RCD ProtectionIntegrated 30mA AC and 6mA DC RCD
      Service Fuse ProtectionAutomated load management via wired CT & MID meter (available separately)
      MID MeterInbuilt +/-1%
