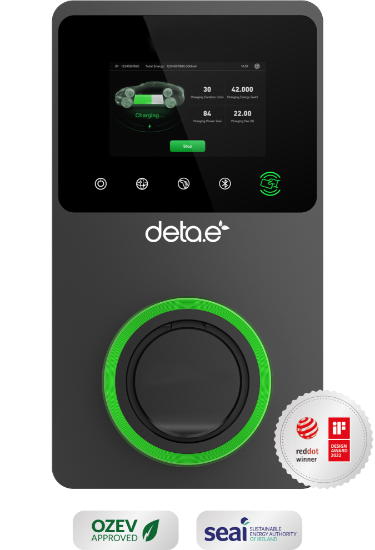

    Picture of eVoomXT
    Picture of eVoomXT

    eVoomXT

    • 7.4kW Single Phase / 11kW/22kW Three Phase
    • Integrated 30mA AC & 6mA DC Earth Fault Protection
    • Built in Open PEN Fault Protection RFID Enabled (Supplied With 2 Cards)
    • LCD Screen Allows Operation via the Screen
    • Customisation of LCD Screen Display for Images/Adverts
    • 4G, Wi-Fi, Ethernet and Bluetooth Connectivity
    • Over-the-Air Firmware Updates
    • Scheduled & Energy Tariff Charging Options
    • Safe Electrical Load Management
    • OCPP 1.6J Compliant for Remote Management & Control
    • 5-Year Warranty
    Be the first to review this product
    £0.00
    Products specifications
    Attribute nameAttribute value
    Product Information
    ModeleVoomXT
    Product NumberEVC7005
    Connection CapacitySingle Phase, 7.4kW & Three Phase , 22KW AC
    Charging ConnectorUn-tethered, IEC 62196/Type 2
    Charging ProtocolMode 3 (EN/IEC61851)
    Communication
    Status Indication / HMITouch Screen & Multi-colour LEDs
    StandardWiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; 4G; RS485
    Physical Properties
    Dimensions (H xWx D)335mm x 187mm x 85mm
    Mounting TypePole/Wall mounted
    ColourGrey
    Unit MaterialPC
    Environmental Properties
    Operating Temperature-40 to +55° C
    Operating HumidityUp to 95%RH, non-condensing
    IP RatingIP54, IK10
    Standards & Compliance
    EMC ComplianceEN61000-6-3:2006, EN61000-6-2:2019
    Safety ComplianceEN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
    EV Charging ComplianceEN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
    Electrical Properties
    AC Charging Output7.4kW, 32A@230V AC & 22kW, 32A@400V AC
    Input Voltage230V AC & 400V AC nominal
    Input Frequency50 Hz
    Input Current (max)32 A
    Energy MonitoringPower and energy monitoring as standard via APP & LCD display
    Overcurrent ProtectionInternal overcurrent protection
    Installation
    PEN Fault ProtectionBuilt-in open PEN protection (detection + isolation). Can safely be installed without an earth-rod
    RCD ProtectionIntegrated 30mA AC and 6mA DC RCD
    Service Fuse ProtectionAutomated load management via wired CT and MID meter (available seperately)
    MID MeterInbuilt +/- 1%
